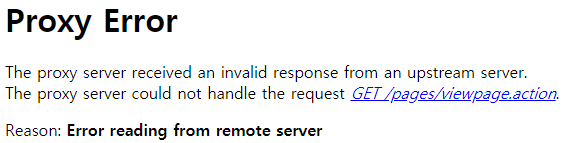

If you found that your server shows "Proxy Error" - "Error reading remote server", it might be associated with the system resources or settings.


I tried below method to resolve the problem.


Checking if Synchrony is working or not

I just checked listing ports like below, and I learned there is no port open for synchrony - its default port number is 8091

~# netstat -tulnp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:25              0.0.0.0:*               LISTEN      2755/master
tcp        0      0 127.0.0.1:6379          0.0.0.0:*               LISTEN      2104/redis-server 1
tcp        0      0 0.0.0.0:11211           0.0.0.0:*               LISTEN      2086/memcached
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      2088/sshd
tcp6       0      0 :::25                   :::*                    LISTEN      2755/master
tcp6       0      0 :::8090                 :::*                    LISTEN      29399/java
tcp6       0      0 :::443                  :::*                    LISTEN      25560/httpd
tcp6       0      0 127.0.0.1:8000          :::*                    LISTEN      29399/java
tcp6       0      0 :::3306                 :::*                    LISTEN      2651/mysqld
tcp6       0      0 :::11211                :::*                    LISTEN      2086/memcached
tcp6       0      0 :::80                   :::*                    LISTEN      25560/httpd
tcp6       0      0 :::22                   :::*                    LISTEN      2088/sshd
udp        0      0 127.0.0.1:323           0.0.0.0:*                           1807/chronyd
udp        0      0 0.0.0.0:11211           0.0.0.0:*                           2086/memcached
udp6       0      0 ::1:323                 :::*                                1807/chronyd
udp6       0      0 :::11211                :::*                                2086/memcached

If it is, go to "General Configuration" → "Collaborative editing" → Change "editing mode" → Save

Case Sensitive collation in your MySQL

If you are using MySQL as database, you should make sure if your database is created as below command. If not, you should backup your confluence, drop and create your database.

CREATE DATABASE confluence CHARACTER SET utf8 COLLATE utf8_bin;

I thought my database is created as utf8_bin, so may have no issue, but eventually faced lots of issues that associated with character set. Once I created a table by above commands, I had no issues for shortly.


Modifying a value of maxThreads.Connector in <confluence_home_directory>/conf/server.xml

The below is what I tried on server.xml - I just put 1024 for maxThreads instead of its default value(48)

<confluence_home_directory>/conf/server.xml
...
        <Connector port="8090" connectionTimeout="20000" redirectPort="8443"
                   maxThreads="1024" minSpareThreads="10"
                   enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
                   protocol="org.apache.coyote.http11.Http11NioProtocol"/>
...

Below is another example

<confluence_home_directory>/conf/server.xml
<Server port="8000" shutdown="SHUTDOWN" debug="0">
    <Service name="Tomcat-Standalone">
        <Connector port="8090" connectionTimeout="20000" redirectPort="8443"
                   maxThreads="4096" minSpareThreads="10"
                   enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
                   protocol="org.apache.coyote.http11.Http11NioProtocol"
                   scheme="http" proxyName="your_domain.com" proxyPort="80"/>

        <Engine name="Standalone" defaultHost="localhost" debug="0">
            <Host name="localhost" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false" startStopThreads="4">
                <Context path="" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">
                    <!-- Logging configuration for Confluence is specified in confluence/WEB-INF/classes/log4j.properties -->
                    <Manager pathname=""/>
                    <Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
                </Context>

                <Context path="${confluence.context.path}/synchrony-proxy" docBase="../synchrony-proxy" debug="0"
                         reloadable="false" useHttpOnly="true">
                    <Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
                </Context>
            </Host>
        </Engine>
    </Service>
</Server>

Once your modification is done, you should restart your server to take effect.


Apache proxy

If you are using Apache proxy, you should check if you change the setting like below. Note that you should put your own domain name for proxy server or just 127.0.0.1 is good enough if that is installed internally.

<confluence_home_directory>/conf/server.xml
<Server port="8000" shutdown="SHUTDOWN" debug="0">
    <Service name="Tomcat-Standalone">
        <Connector port="8090" connectionTimeout="20000" redirectPort="8443"
                   maxThreads="48" minSpareThreads="10"
                   enableLookups="false" acceptCount="10" debug="0" URIEncoding="UTF-8"
                   protocol="org.apache.coyote.http11.Http11NioProtocol"
                   scheme="http" proxyName="127.0.0.1" proxyPort="80"/>

        <Engine name="Standalone" defaultHost="localhost" debug="0">
            <Host name="localhost" debug="0" appBase="webapps" unpackWARs="true" autoDeploy="false" startStopThreads="4">
                <Context path="" docBase="../confluence" debug="0" reloadable="false" useHttpOnly="true">
                    <!-- Logging configuration for Confluence is specified in confluence/WEB-INF/classes/log4j.properties -->
                    <Manager pathname=""/>
                    <Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
                </Context>

                <Context path="${confluence.context.path}/synchrony-proxy" docBase="../synchrony-proxy" debug="0"
                         reloadable="false" useHttpOnly="true">
                    <Valve className="org.apache.catalina.valves.StuckThreadDetectionValve" threshold="60"/>
                </Context>
            </Host>
        </Engine>
    </Service>
</Server>


Checking router settings if you forward Synchrony port

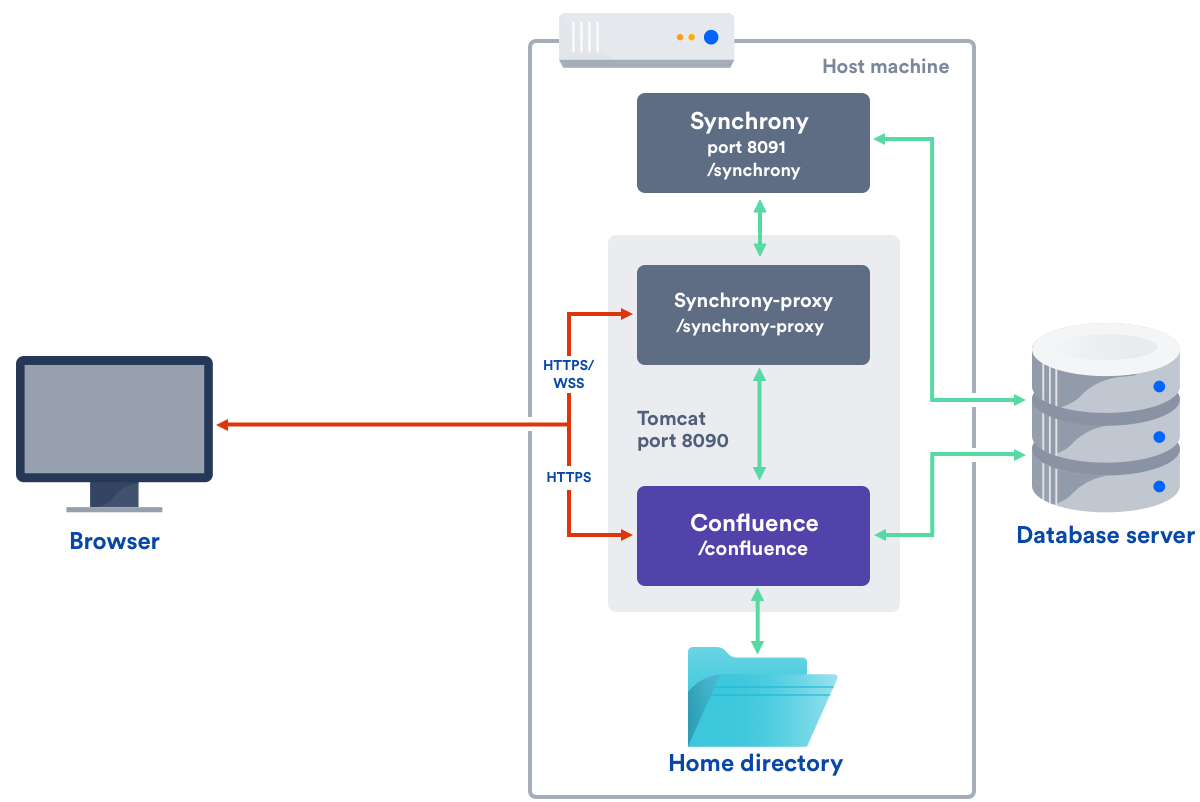

Based on the log on my router, I got lots of DDoS attack from external servers, and it does not necessary to open that port. Technically Confluence already has a proxy feature to support as below - the action you need is to delete that port(default:8091) in the forwarding list.

Reference: https://confluence.atlassian.com/doc/possible-confluence-and-synchrony-configurations-958779064.html


Modifying /etc/security/limits.conf in my CentOS 7 server.

/etc/security/limits.conf
* hard nofile 500000
* soft nofile 500000
root hard nofile 500000
root soft nofile 500000

Increasing max memory by modifying setenv.sh

One of the possibility is caused by memory limits. In my case, mx used the default value (1024m), so I changed its size to 2048m.

Below is my configuration at <confluence home directory>/bin/setenv.sh

<confluence home>/bin/setenv.sh
# Set the JVM arguments used to start Confluence. For a description of the options, see
# http://www.oracle.com/technetwork/java/javase/tech/vmoptions-jsp-140102.html
CATALINA_OPTS="-XX:-PrintGCDetails -XX:+PrintGCDateStamps -XX:-PrintTenuringDistribution ${CATALINA_OPTS}"
CATALINA_OPTS="-Xloggc:$LOGBASEABS/logs/gc-`date +%F_%H-%M-%S`.log -XX:+UseGCLogFileRotation -XX:NumberOfGCLogFiles=5 -XX:GCLogFileSize=2M ${CATALINA_OPTS}"
CATALINA_OPTS="-XX:G1ReservePercent=20 ${CATALINA_OPTS}"
CATALINA_OPTS="-Djava.awt.headless=true ${CATALINA_OPTS}"
CATALINA_OPTS="-Datlassian.plugins.enable.wait=300 ${CATALINA_OPTS}"
# CATALINA_OPTS="-Xms1024m -Xmx1024m -XX:+UseG1GC ${CATALINA_OPTS}"
CATALINA_OPTS="-Xms1024m -Xmx2048m -XX:+UseG1GC ${CATALINA_OPTS}"
CATALINA_OPTS="-Dsynchrony.enable.xhr.fallback=true ${CATALINA_OPTS}"
CATALINA_OPTS="-Dorg.apache.tomcat.websocket.DEFAULT_BUFFER_SIZE=32768 ${CATALINA_OPTS}"
CATALINA_OPTS="-Djava.locale.providers=COMPAT,SPI ${CATALINA_OPTS}"
CATALINA_OPTS="${START_CONFLUENCE_JAVA_OPTS} ${CATALINA_OPTS}"
CATALINA_OPTS="-Dconfluence.context.path=${CONFLUENCE_CONTEXT_PATH} ${CATALINA_OPTS}"
CATALINA_OPTS="-XX:ReservedCodeCacheSize=256m -XX:+UseCodeCacheFlushing ${CATALINA_OPTS}"

Once your modification is done, you should restart your server to take effect.

Adding more memory to Synchrony

The default memory size for Synchrony is 1g, and below shows the memory is assigned by 2g. That should be added at the end of <confluence home directory>/bin/setenv.sh

<confluence home directory>/bin/setenv.sh
CATALINA_OPTS="-Dsynchrony.memory.max=2g ${CATALINA_OPTS}"

{

Change port number for collaborative editing

Other approaches

https://confluence.atlassian.com/doc/troubleshooting-collaborative-editing-858772087.html

https://confluence.atlassian.com/conf70/possible-confluence-and-synchrony-configurations-976757434.html
