In order to allow connect to Mikrotik Router WebFig remotely, you should add a firewall filter and NAT rule for remote connection in WebFig.

1) Create a firewall filter

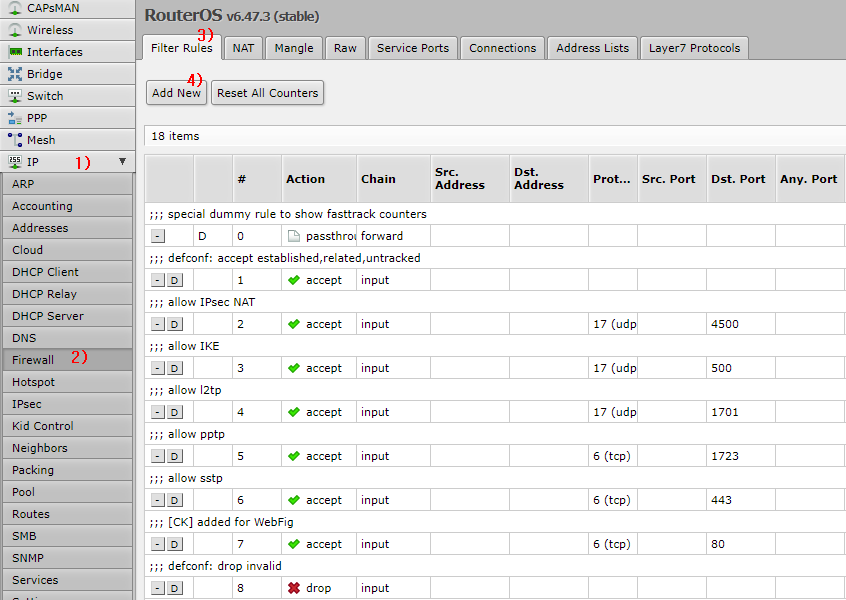

The first action you should do is to add filtering option for port 80 at IP → Firewall → Filter Rules → Add New

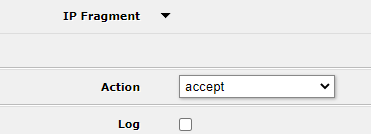

And then you should make sure if you put following item correctly

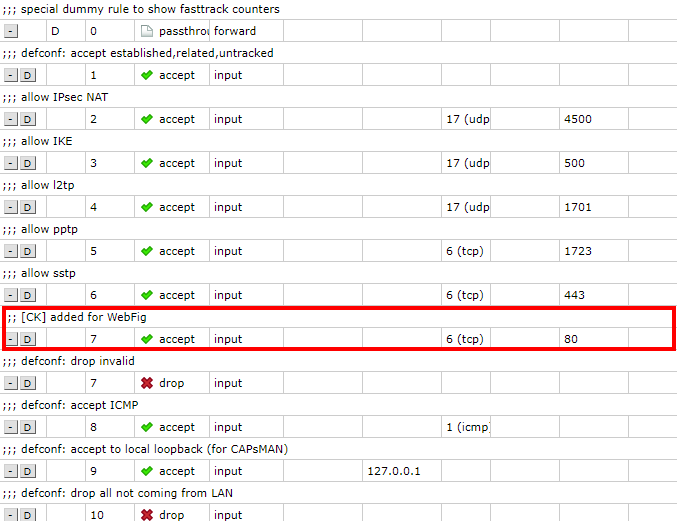

You may able to locate above filtering information after #6 like below:

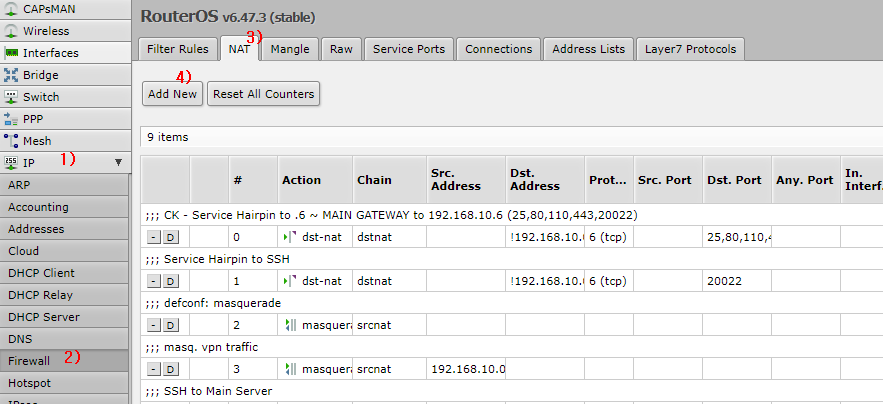

2) Creating a NAT rule by IP → Firewall → NAT → Add New

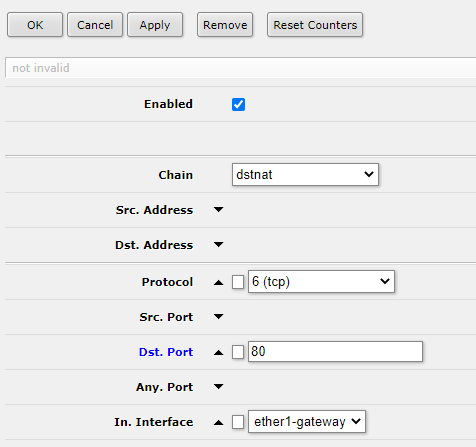

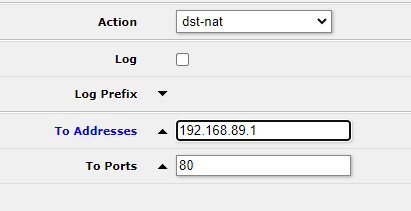

And you should check followings

Note that you can change the connection port number if you want

Now you can connect to WebFig remotely.
